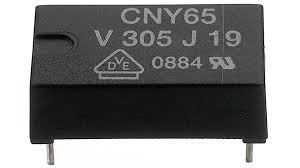

CNY65B VISHAY | Transistor Output Optocouplers Phototransistor Out Single CTR 100-200%

Brand
Price
Rs 80.00 (Exc.Taxes)

Transistor Output Optocouplers

Phototransistor Out Single CTR 100-200%

For Bulk Enquiries, Kindly E-mail us at sales@rksemitronics.com
Quantity

Total Price
Total Price: Rs 400.00
Minimum Quantity
5
🚚 Delivery in 3 to 5 days in PAN India.
📦 Free shipping on all orders over Rs 2000

About Product

Manufacturer: Vishay

Product Category: Transistor Output Optocouplers

RoHS:

Mounting Style: Through Hole

Package/Case: DIP-4

Number of Channels: 1 Channel

Isolation Voltage: 8200 Vrms

Output Type: NPN Phototransistor

Current Transfer Ratio - Min: 100 %

Current Transfer Ratio - Max: 200 %

If - Forward Current: 75 mA

Vf - Forward Voltage: 1.6 V

Maximum Collector Emitter Voltage: 32 V

Maximum Collector Current: 50 mA

Maximum Collector Emitter Saturation Voltage: 300 mV

Rise Time: 2.4 us

Fall Time: 2.7 us

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 250 mW

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 85 C

Series: CNY

Packaging: Tube

Brand: Vishay Semiconductors

Collector-Emitter Breakdown Voltage: 32 V

Configuration: 1 Channel

Current Transfer Ratio: 100 %

Description/Function: Optocoupler, Phototransistor Output, Very High Isolation Voltage

Height: 6.1 mm

Length: 17.8 mm

Product Type: Transistor Output Optocouplers

1050

Subcategory: Optocouplers

Width: 9.6 mm

Unit Weight: 260 mg

Manufacturer: Vishay

Product Category: Transistor Output Optocouplers

RoHS:

Mounting Style: Through Hole

Package/Case: DIP-4

Number of Channels: 1 Channel

Isolation Voltage: 8200 Vrms

Output Type: NPN Phototransistor

Current Transfer Ratio - Min: 100 %

Current Transfer Ratio - Max: 200 %

If - Forward Current: 75 mA

Vf - Forward Voltage: 1.6 V

Maximum Collector Emitter Voltage: 32 V

Maximum Collector Current: 50 mA

Maximum Collector Emitter Saturation Voltage: 300 mV

Rise Time: 2.4 us

Fall Time: 2.7 us

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 250 mW

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 85 C

Series: CNY

Packaging: Tube

Brand: Vishay Semiconductors

Collector-Emitter Breakdown Voltage: 32 V

Configuration: 1 Channel

Current Transfer Ratio: 100 %

Description/Function: Optocoupler, Phototransistor Output, Very High Isolation Voltage

Height: 6.1 mm

Length: 17.8 mm

Product Type: Transistor Output Optocouplers

1050

Subcategory: Optocouplers

Width: 9.6 mm

Unit Weight: 260 mg
